Belt Conveyors
Description
Description
Belt conveyor serves as an important part in transporting materials like plastics based on the working principle of continuous friction. It consists of the following parts: rack, belt, carrier roller, cylinder, tensioner and transmission device. The belt conveying machine is capable of conveying materials smoothly during the whole process, from the supplying site to the discharging site. Besides, not only can this belt conveyor convey fragmental parts, but also transport finished products. Its assembly line turns out to be very effective, greatly enhancing the molding efficiency during the molding process.
- Product introduction
- Inquiry Now
Description
Belt conveyor serves as an important part in transporting materials like plastics based on the working principle of continuous friction. It consists of the following parts: rack, belt, carrier roller, cylinder, tensioner and transmission device. The belt conveying machine is capable of conveying materials smoothly during the whole process, from the supplying site to the discharging site. Besides, not only can this belt conveyor convey fragmental parts, but also transport finished products. Its assembly line turns out to be very effective, greatly enhancing the molding efficiency during the molding process.
Advantages
1. HYSION belt conveyor is configured with elastic adjustable device, ensuring the running flexible and reliable.
2. The length of belt can be adjusted according to the customer’s requirement within a certain range.
3. Belt conveyor is designed with simple structure, making the automatic control and operation very convenient and meanwhile the maintenance is easy.
4. Belt conveying machine is specially installed with baffle plate, which is beneficial to preventing the products and materials from dropping.
5. It comes with excellent conveying ability, especially is capable of long distance conveying.
6. Belt conveyor is typical of fast speed (0 to 9.5 m/min.), smooth running and low noise.
Parameters
| Model | Power (W) |
Conveying Speed(m/min) |
Belt (mm) | Weight (kg) |
L (mm) |
L1 (mm) |
D (mm) |
D1 (mm) |
H (mm) |
H1 (mm) |
| SCB-200 | 60 | 0-9.5 | 200 | 55 | 1700 | 400 | 200 | 850-1100 | ||
| SCB-300 | 60 | 0-9.5 | 300 | 60 | 1700 | 400 | 300 | 850-1100 | ||
| SCB-400 | 60 | 0-9.5 | 400 | 70 | 1700 | 400 | 400 | 850-1100 | ||
| SCB-500 | 140 | 0-9.5 | 500 | 85 | 1700 | 400 | 500 | 850-1100 | ||
| SCB-200B | 60 | 0-9.5 | 200 | 90 | 2250 | 500 | 400 | 200 | 1450 | 950 |
| SCB-300B | 60 | 0-9.5 | 300 | 110 | 2250 | 500 | 400 | 300 | 1450 | 950 |
| SCB-400B | 140 | 0-9.5 | 400 | 120 | 2250 | 500 | 400 | 400 | 1450 | 950 |
| SCB-500B | 140 | 0-9.5 | 500 | 145 | 2250 | 500 | 400 | 500 | 1450 | 950 |
| SCB-200T | 140 | 0-9.5 | 200 | 97 | 2350 | 700 | 500 | 200 | 970 | |
| SCB-300T | 140 | 0-9.5 | 300 | 112 | 2350 | 700 | 500 | 300 | 970 | |
| SCB-400T | 140 | 0-9.5 | 400 | 127 | 2350 | 700 | 500 | 400 | 970 | |
| SCB-500T | 140 | 0-5.5 | 500 | 150 | 2350 | 700 | 500 | 500 | 970 |

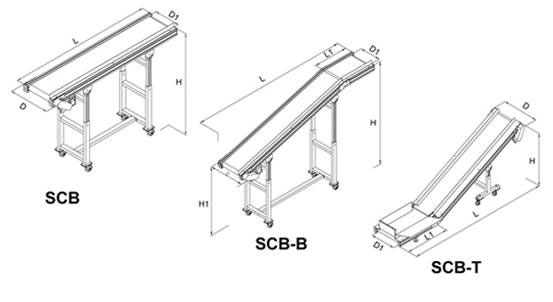

Diagram of installation:
