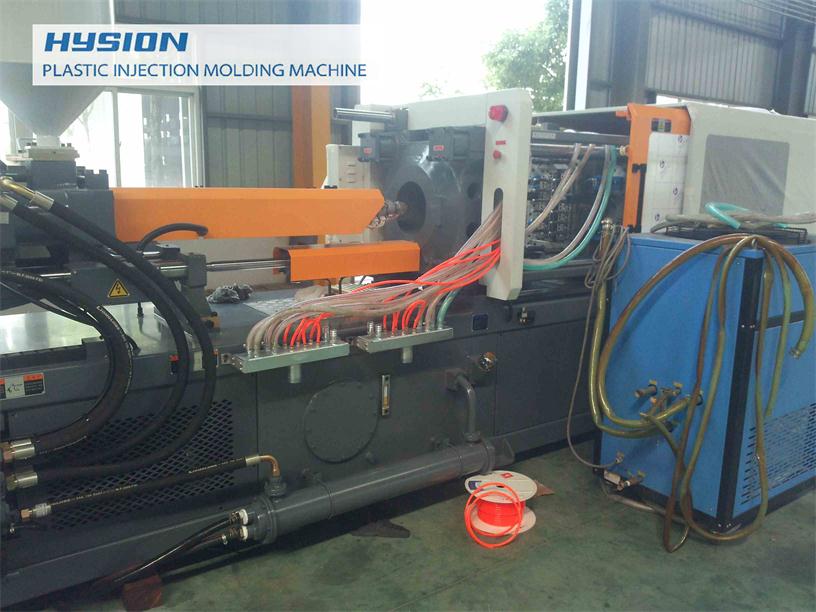

HX(*) 298 Injection Molding Machines

  • pic/pp1.jpg
  • pic/pp2.jpg
  • pic/pp2.jpg
  • pic/pp2.jpg
  • pic/pp2.jpg
  • pic/pp2.jpg
Description

Description
Like other HYSION precision injection molding machines, ranging from HX65 to HX2000, the HX 298 machine is characterized by various outstanding performances, such as stable running, and precise & fast controlling system. Besides, each high-speed plastic injection forming machinery adopts internationally famous brand materials for its production, which endows it with good stability, long working life, high performance and capability of producing various plastic products.


  • Product introduction
  • Inquiry Now

Description
Like other HYSION precision injection molding machines, ranging from HX65 to HX2000, the HX 298 machine is characterized by various outstanding performances, such as stable running, and precise & fast controlling system. Besides, each high-speed plastic injection forming machinery adopts internationally famous brand materials for its production, which endows it with good stability, long working life, high performance and capability of producing various plastic products.

Components of HX 298 Precision Injection Molding Machine
Clamping Unit
1. Clamping platens are processed by FEA (Finite Element Analysis), ensuring that the clamping system is rigid in structure and runs stably.
2. Highly sensitive mold protection is applied.
3. Mold clamping is rapid and stable.

Hydraulic Unit
1. In HX 298 precision injection molding machine, the hydraulic system is distinctive due to combination of high-quality pump and control valve technology. Besides, the adoption of world famous brands endows this machine with high precision, reliability and repeatability.
2. It is a hydraulic proportional pressure and flow control system.
3. Oil flow supplement contributes to high speed mold clamping and quick-reaction liable performance.

Control System
1. Imported advanced computer controlling system guarantees working flexibility of HX 298 precision injection molding machine.
2. A large color LCD screen is utilized. Besides, it supports multi-language compatibility.
3. Accurate and consistent heat control on barrel temperature is realized due to closed loop PID controller (proportional integral derivative controller).
4. Dustproof and waterproof control cabinets provide a neat and tidy enclosure for electrical control components.
5. Abnormal alarm function is configured to warn operators of machine malfunction.

Injection Unit
1. Dual-cylinder injection unit and high-torque motor are adopted in this precision injection molding machine, such as to guarantee the smooth screw plasticization.
2. Injection pressure, speed and hold pressure are accurately controlled at multi stages.
3. It is set with plasticizing cold start prevention function and suck back function.

Why Do People Choose Our Injection Molding Machine?

Parameters of HX 298 Precision Injection Molding Machine :

MODEL:HX(*)298/1350
TECHNICAL PARAMETER TABLE A B C
INJECTION UNIT SCREW DIAMETER mm 55 60 65
SCREW L/D RATIO L/D 22.5 20.6 19
INJECTION CAPACITY (THEORETICAL) cm3 689 820 962
INJECTION WEIGHT(PS) g 627 750 876
Oz 21.7 25.8 30.3
INJECTION PRESSURE MPa 200 168 143
INJECTION RATE g/s 227 270 316
PLASTICIZING CAPACITY g/s 35 43 51
SCREW SPEED rpm 180
CLAMPING UNIT CLAMP FORCE KN 2980
OPEN STROKE mm 600
    MAX. MOULD HEIGHT mm 690
MIN. MOULD HEIGHT mm 230
SPACE BWTWEEN TIE-BARS (W×H) mm 605*590
EJECTOR FORCE KN 80
EJECTOR STROKE KN 150
EJECTOR NUMBER n 13
OTHERS PUMP PRESSURE MPa 16
MOTOR POWER KW 30/30
HEATING POWER KW 18.15
MACHINE DIMENSION (L×W×H) m 6.5*1.75*2.08
MACHINE WEIGHT t 8.4
OIL TANK CAPACITY L 415

Mold Plate Dimension:
