HXF 218 PET Preform Injection Molding Machine
Description
PET preform injection molding machine is designed though PET preform injection molding technologies, with accurate temperature control system, professional design of barrel, screw and ejector. With special ejector design, the cycle time of our PET preform injection molding machine can be shortened effectively. Our experienced engineering team designs the PET preform injection molding machines according to the property of PET material and practical applications so as to fulfill different customer requirements. Servo motor type with the plasticizing system and the hydraulic system are available for the PET preform injection molding machine. As one of the main products range for us, our PET preform injection molding machine series are exported to different regions across China and many countries worldwide. It can be used for PET bottle performs.

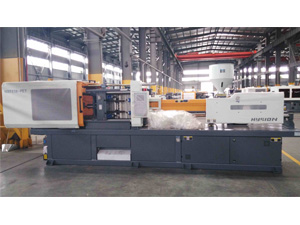

HXF 218 PET Preform Injection Molding Machine
Technical Parameters:
| MODEL: HXF 218PET | |||
| TECHNICAL PARAMETER TABLE | |||
| INJECTION UNIT | SCREW DIAMETER | mm | 65 |
| SCREW L/D RATIO | L/D | 24 | |
| INJECTION CAPACITY (THEORETICAL) | cm3 | 962 | |
| INJECTION WEIGHT(PS) | g | 1019 | |
| INJECTION PRESSURE | MPa | 143 | |
| INJECTION RATE | g/s | 316 | |
| PLASTICIZING CAPACITY | g/s | 51 | |
| SCREW SPEED | rpm | 150 | |
| CLAMPING UNIT | CLAMP FORCE | KN | 2180 |
| OPEN STROKE | mm | 520 | |
| MAX. MOULD | mm | 580 | |
| MIN. MOULD | mm | 200 | |
| SPACE BWTWEEN TIE-BARS (W×H) | mm | 520×520 | |
| EJECTOR FORCE | KN | 80 | |
| EJECTOR STROKE | KN | 150 | |
| EJECTOR NUMBER | n | 9 | |
| OTHERS | PUMP PRESSURE | MPa | 16 |
| MOTOR POWER | KW | 22/30 | |
| HEATING POWER | KW | 22.7 | |
| MACHINE DIMENSION (L×W×H) | m | 6.5*1.34*2.12 | |
| MACHINE WEIGHT | t | 6.9 | |
| OIL TANK CAPACITY | L | 281 | |

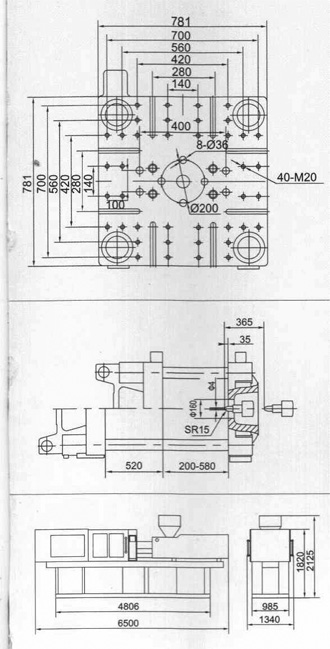

PET Preform Injection Molding Machine Dimensions
Advantage of HXF 218 PET Preform Injection Molding Machine:
The benefits of this PET preform injection molding machine product include energy-savings, high efficiency, professional design, top quality, and competitive price.
Specifications of HXF 218 PET Preform Injection Molding Machines
1. The screw diameter of this PET preform injection molding machine is 50 and L/D ratio is 25.
2. Our PET preform injection molding machine comes with high plasticization capacity.
3. Our PET preform injection molding machine is with extended machine framework, enlarged space between tie bars, mold opening stroke, mold thickness, and ejection stroke.
4. This PET preform injection molding machine is with four or above stages precise temperature PID control for barrel.
5. For our pet preform injection molding machine, the maximum mold height is 530mm; the minimum mold height is 180mm.
6. PET Dehumidifying dryer selected for PET resin's special demands of removing moisture.
7. The PET preform injection molding machine is suitable for both varied pump and standard pump.
8. The PET preform injection molding machine can be used for PET bottle preforms.
