HXF 330PET Bottle Injection Molding Machinery
Model: HXF 330
Description
We are leading manufactures of PET Bottle injection molding machinery in China, providing wide range of PET bottle injection molding machinery across China and all over the world. This HXF PET bottle injection molding machinery can be used for various applications, such as PET line applications, distilled bottles, wide mouth jar, mineral water bottles, cosmetics bottles and etc. The benefits of our HXF 330 PET Bottle injection molding machinery are energy-saving, consumption-reducing and highly-efficient.
PET Bottle Injection Molding Machinery (HXF 330)
Technical Parameters:
| MODEL: HXF 330PET | |||
| TECHNICAL PARAMETER TABLE | |||
| INJECTION UNIT | SCREW DIAMETER | mm | 75 |
| SCREW L/D RATIO | L/D | 25 | |
| INJECTION CAPACITY (THEORETICAL) | cm3 | 1859 | |
| INJECTION WEIGHT(PS) | g | 1970 | |
| INJECTION PRESSURE | MPa | 152 | |
| INJECTION RATE | g/s | 446 | |
| PLASTICIZING CAPACITY | g/s | 70 | |
| SCREW SPEED | rpm | 160 | |
| CLAMPING UNIT | CLAMP FORCE | KN | 3300 |
| OPEN STROKE | mm | 660 | |
| MAX. MOULD | mm | 750 | |
| MIN. MOULD | mm | 250 | |
| SPACE BWTWEEN TIE-BARS (W×H) | mm | 720×670 | |
| EJECTOR FORCE | KN | 180 | |
| EJECTOR STROKE | KN | 180 | |
| EJECTOR NUMBER | n | 13 | |
| OTHERS | PUMP PRESSURE | MPa | 16 |
| MOTOR POWER | KW | 37/37 | |
| HEATING POWER | KW | 31.15 | |
| MACHINE DIMENSION (L×W×H) | m | 7.9*1.77*2.18 | |
| MACHINE WEIGHT | t | 12 | |
| OIL TANK CAPACITY | L | 680 | |

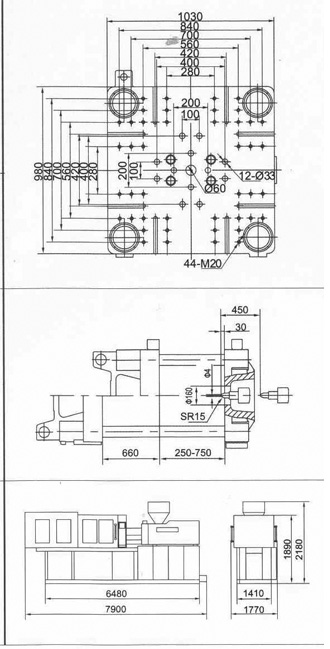

PET Bottle Injection Molding Machinery Dimensions
Advantage of PET Bottle Injection Molding Machinery:
The advantages of PET bottle injection molding machinery (HXF 330) come with energy-saving and high efficiency, professional design, top quality and competitive price.
Specifications of HXF 330 PET Preform Injection Molding Machines
1. The screw diameter of PET bottle injection molding machinery is 75 and L/D ratio is 25.
2. The injection capacity of the PET bottle injection molding machinery (HXF 330) is 1502 cm3.
3. This model of PET bottle injection molding machinery features extended machine framework, enlarged space between tie bars, mold opening stroke, mold thickness, and ejection stroke.
4. Four or above stages precise temperature PID control for barrel.
5. The maximum mold height of the PET bottle injection molding machinery (HXF 330) is 750mm, and the minimum mold height is 250mm.
6. PET Dehumidifying dryer selected for PET resin's special demands of removing moisture.
7. PET bottle injection molding machinery (HXF 330) is suitable for both varied pump and standard pump.
